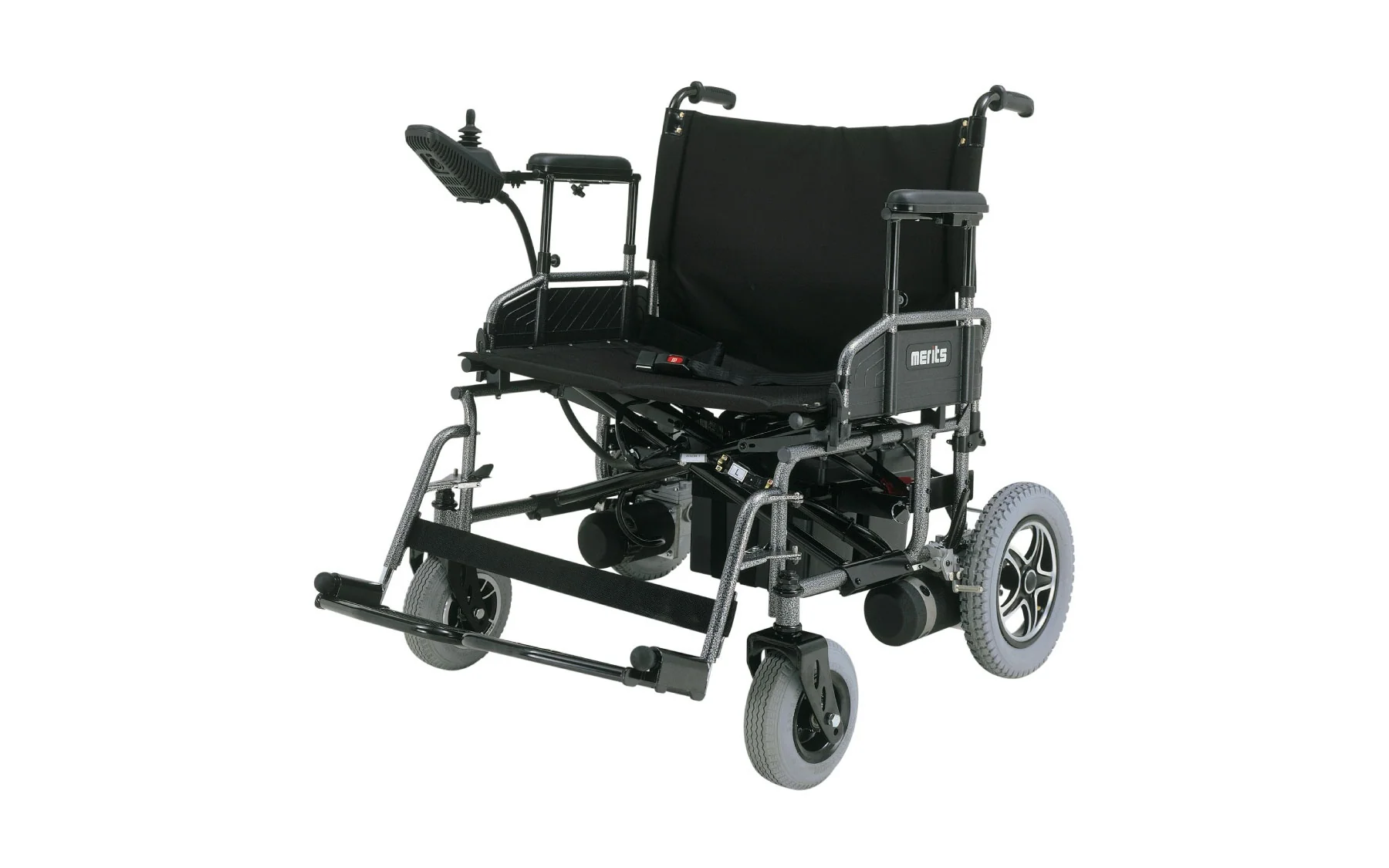

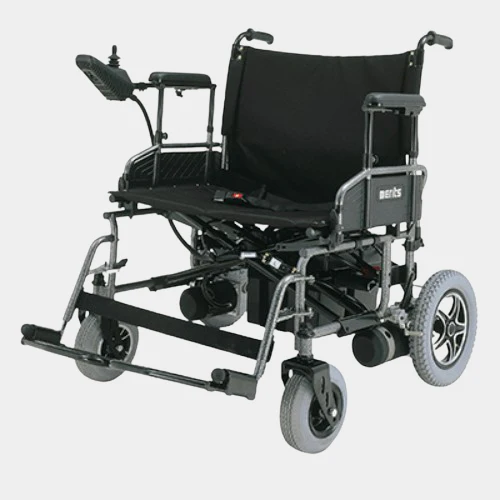

The Merits Travel Ease 24 P182 Power Wheelchair is a top-of-the-line mobility solution designed for those with limited mobility. With its advanced power system and durable construction, this wheelchair offers users up to 24% more mobility than traditional models. Experience the freedom and convenience of the Travel Ease 24 P182.
Model# P182‐‐STMU
Key Features:
Reinforced frame with double cross braces provide a sturdy support for heavy duty use.
Auxiliary hand brakes offer extra safety.

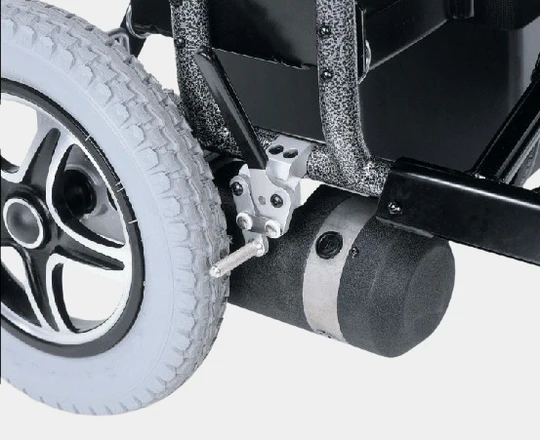

Four poles motor provides more power and torque.
Optional pneumatic casters and drive wheels.
Patented folding battery tray allows improved portability.
Programmable controller with various choices of different performance to fit various needs of users.

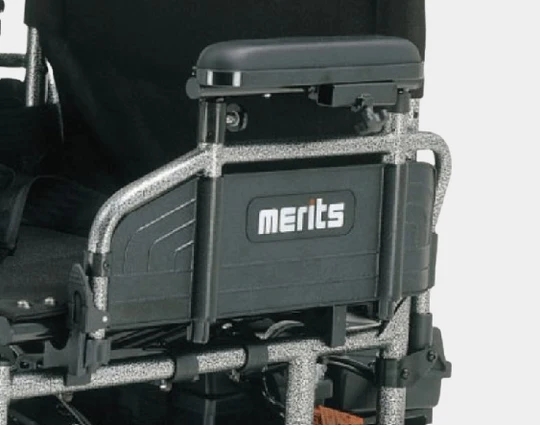

Height adjustable flip-up desk armrests and swing away footrests for easier access.
Optional adjustable mounting bracket for the controller, swing back mounting bracket.
Dimensions
(cm/in)
Seat width
Seat depth
Seat height
Backrest height
Armrest height
Footrest extension length
Overall length
Overall width
Overall height
Folded width
61 cm / 24″ 51 cm /20″ 53 cm / 21″ 38-48 cm / 15″-19″ 20-30 cm / 8″-12″ 40-53 cm / 16″-21″ 120 cm / 45″ 76 cm / 30″ 91 cm / 36″ 38 cm / 15″
Key Details
Driving Range 40 km / 25 mi.
Max Speed 6.5 km/h , 4 mph
Battery Type 12V / 22NF x 2 pcs
Motor DC 24V , 300W , 2P (Rating) / 1450W (Max)
Max Climbing Angle 10°
Turning Radius 66 cm /26″
Ground Clearance 12 cm / 4.5″
Controller PG VSI 70A
Charger 5A off-board
Weight Capacity 272 kg / 600 lb
Total Weight 83 kg / 183 lb

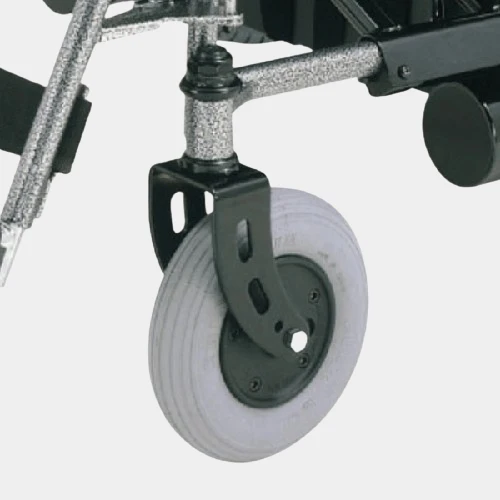

Front wheel 9″ (2.80/2.50-4) Foam filled tire
Drive Wheel 12-1/2”x 2-1/4” Foam filled tire
Rear wheel 12-1/2”x 2-1/4” Foam filled tire
